Description
314300BT - Diesel Engine Compression Test Kit - CV - with Bluetooth Pressure Sensor
Professional compression test kit for checking compression on both direct and indirect commercial diesel injected engines, now supplied with the 314051BT- Bluetooth Pressure Sensor in place of the analogue gauge.
Suitable for heavy duty diesel engine applications including Industrial, Plant, Marine and Agricultural engines, with wireless pressure monitoring and data logging capability via the Sykes Pickavant mobile app.
- Tests compression on direct and indirect commercial diesel engines
- Suitable for Industrial, Plant, Marine and Agricultural diesel applications
- Bluetooth pressure monitoring via iOS / Android app
- Live pressure recording and CSV export capability
- Quick connection system for fast assembly and repeat testing
- Compact starter kit of adaptors and clamping plates for commercial vehicle applications
Specification
- Hose Assembly Length: 560mm
- Pressure Range: 0-60 Bar
- Wireless Bluetooth transmission greater than 20m
- Accuracy: ±0.5%FS
- IP65 rated pressure sensor

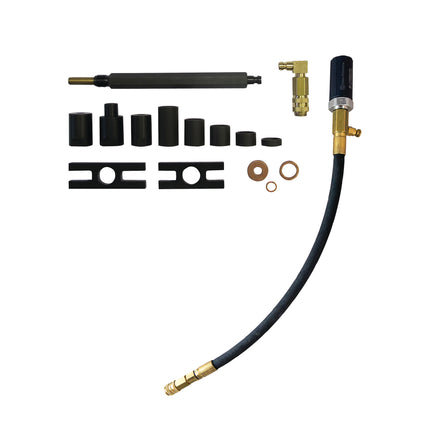

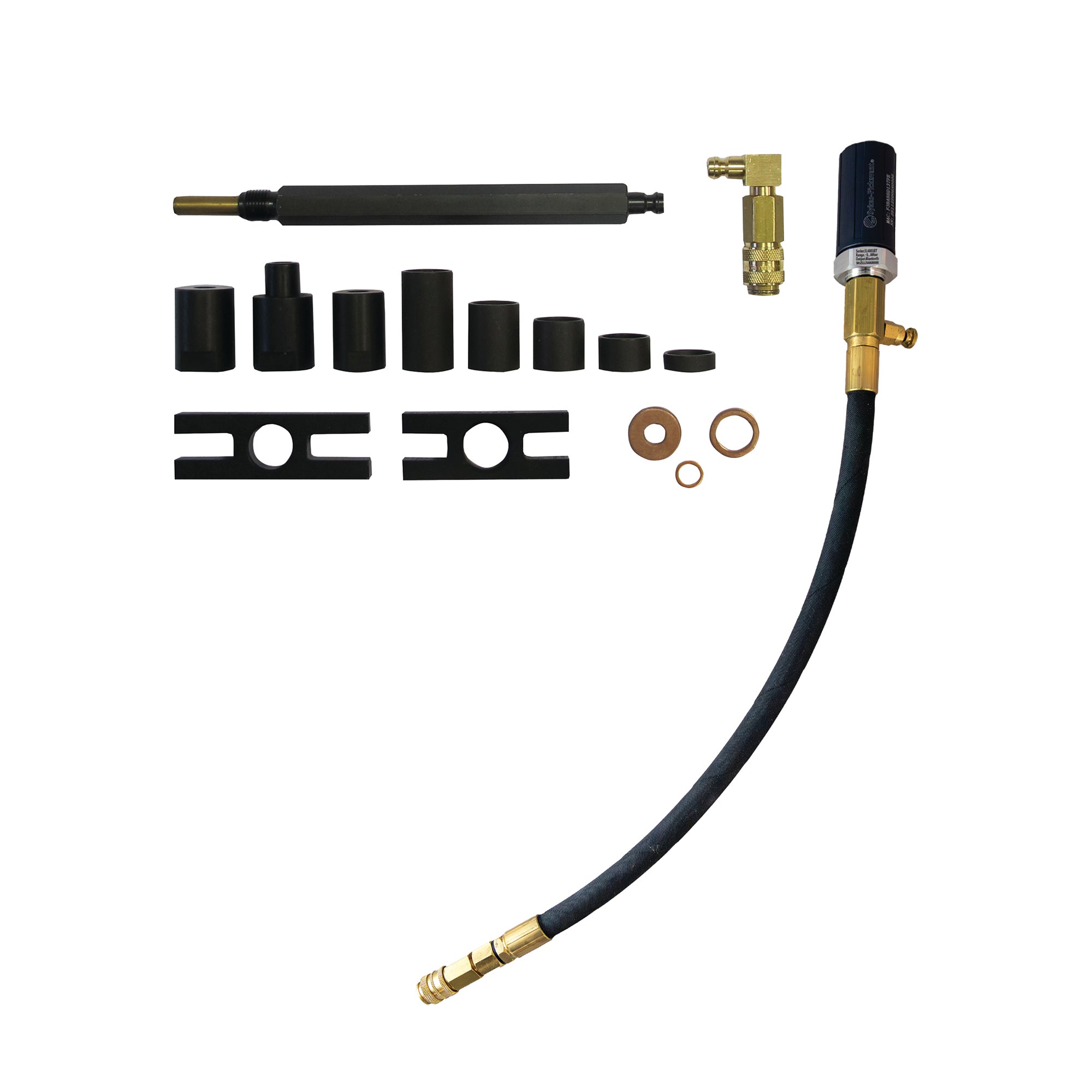

Contents
Supplied in plastic carry case with foam insert:
- 314051BT Bluetooth Pressure Sensor 0-60 Bar & Flexible hose assembly
- End Adaptors x3
- Spacers x5
- Clamp Plates x2
- Centre Pillar
- Elbow Connector
Bluetooth Pressure Sensor Features
- Range: 0-60 Bar
- Bluetooth connectivity for wireless pressure monitoring
- Live pressure graphing and recording via app
- CSV export functionality
- 1-second transmission rate
- CR2032 battery powered
- Typical battery life up to 12 months
- Compatible with existing Sykes Pickavant compression systems
Bluetooth App
The 314001DG app supports iOS and Android Bluetooth apps. Once connected, the app can be used to display pressure values, start/stop logging, and export CSV test filess. See more in our overview video.
Download the app from the iOS App Store or Google Play Store below. Note that in order to install the download, you will need to set your device to allow installations from "unknown parties" in your security settings.
